NissanVanette SerenaKVC2301.1997 - 01.1998Chassis and transmission384 - breather piping (FR unit)(unit)

384 - breather piping (FR unit)(unit) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ)drive 2WD (two-wheel drive )
Manufacture period01.1997 - 01.1998grade FXtransmission AT (automatic transmission )

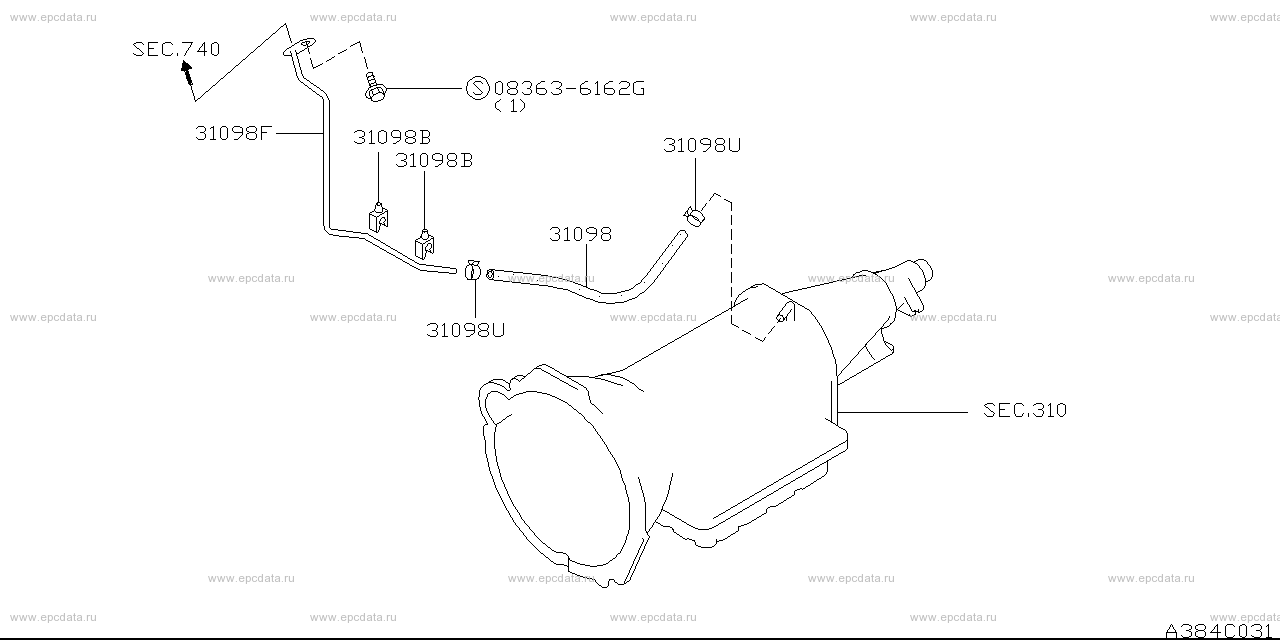

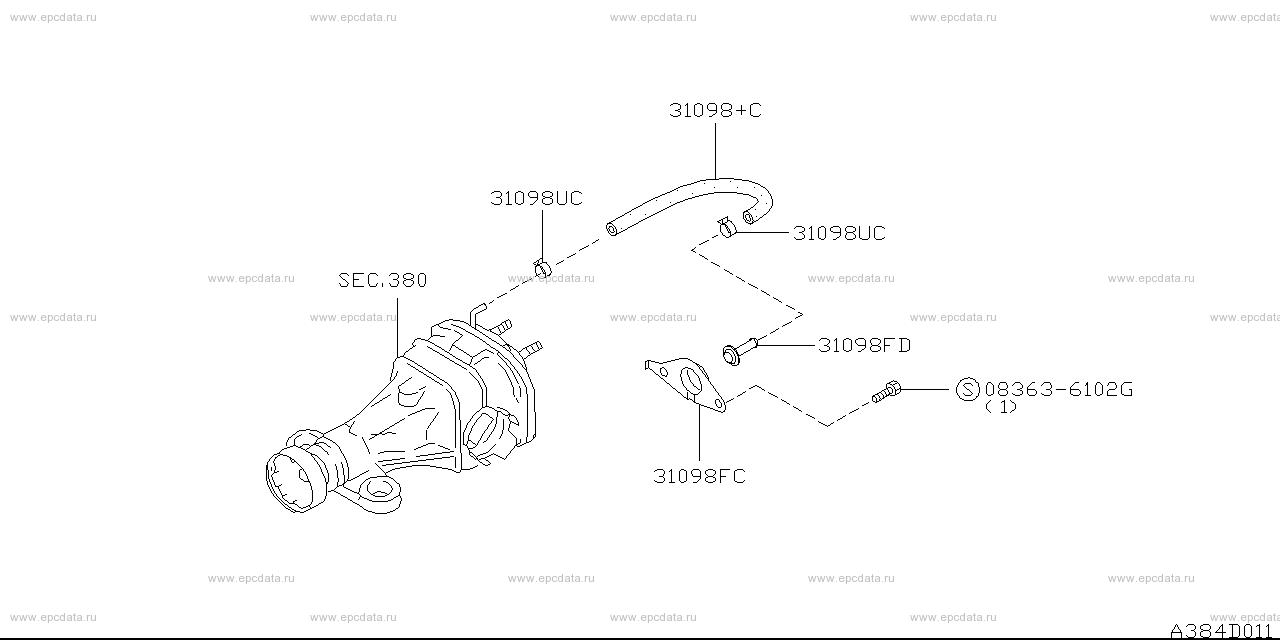

Scheme 384D_001 Scheme 384D_003
Applies for modelsManufacture periodSpec
2WD.SR20DE.AT +2WD.CD20T.AT08.1995 - 01.1997フロント
2WD.SR20DE.AT +2WD.CD20ET.AT01.1997 - 01.1998フロント
2WD.SR20DE.AT +2WD.CD20ET.AT01.1998 - ...フロント

Open full screen pictureOpen full screen picture
Up to the top

083636162G
31098 - hose, breather
31098B - clip, breather hose
31098F - connector, breather hose
31098U - clamp, breather hose
Applies for modelsManufacture periodSpec
2WD.SR20DE +2WD.CD20T08.1995 - 01.1997リヤ
2WD.SR20DE +2WD.CD20ET01.1997 - 01.1998リヤ
2WD.SR20DE +2WD.CD20ET01.1998 - ...リヤ

Open full screen pictureOpen full screen picture
Up to the top

083636102G
31098+C - hose, breather
31098FC - connector, breather hose
31098FD - connector, breather hose
31098UC - clamp, breather hose
